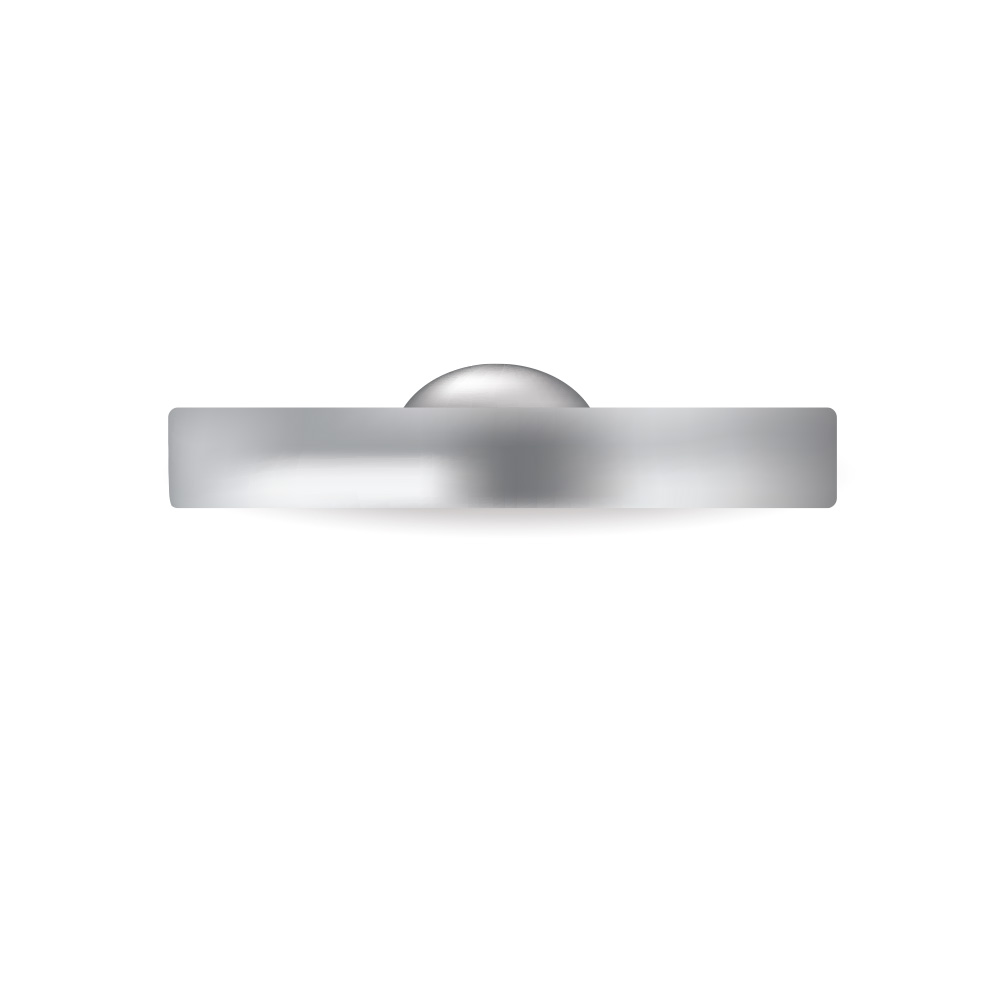

Type TD

Feature & Benefit: Features central top of head nib for permanent weld applications

Application: Automotive permanent fixture

82° U/C Flat Head

Feature & Benefit: Extremely low profile head which requires less torque

Application: Windows, low profile hinges

82° Flat Head

Feature & Benefit: Head recessed to create flush surface

Application: Hinges or wood

90° Flat Head

Feature & Benefit: Head recessed to create flush surface

Application: Hinges or wood. Generally used in metric applications

Indented Hex Head

Feature & Benefit: Common in both metric and imperial applications for socket driving

Application: General fastening applications

Fillister Head

Feature & Benefit: High head height with dome head allowed for deeper drive

Application: General purpose

Cheese Head

Feature & Benefit: Medium head height and 90 degree clamp down surface

Application: General purpose

Button Head

Feature & Benefit: Medium head height for better torque resistance

Application: Automotive

Bugle Head

Feature & Benefit: Countersunk for minimal substrate penetration

Application: Drywall or Decking

Binding Head

Feature & Benefit: Medium head height with dome head allowed for deeper drive

Application: General purpose

100° Flat Head

Feature & Benefit: Recessed head with least substrate penetration

Application: Hinges or wood

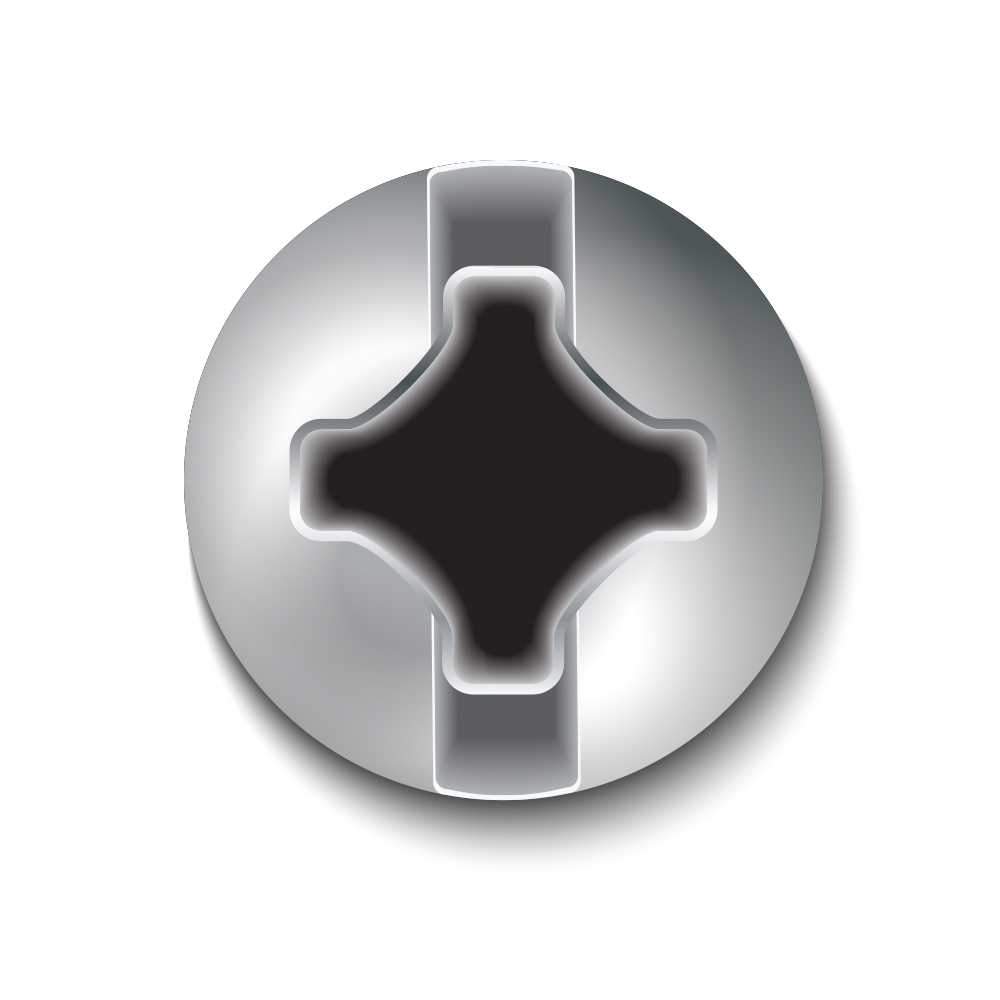

Quadrex Plus (Triple Combination)

Feature & Benefit: Triple Combination of Phillips, square and slotted drives

Application: Electrical

Quadrex Combination

Features & Benefits: Combination of Phillips and square drive

Application: Ideal for North American usage

Allen Key

Feature & Benefit: Single drive, 6 contact points available in both imperial and metric

Application: Automotive, domestic sporting goods, furniture assembly

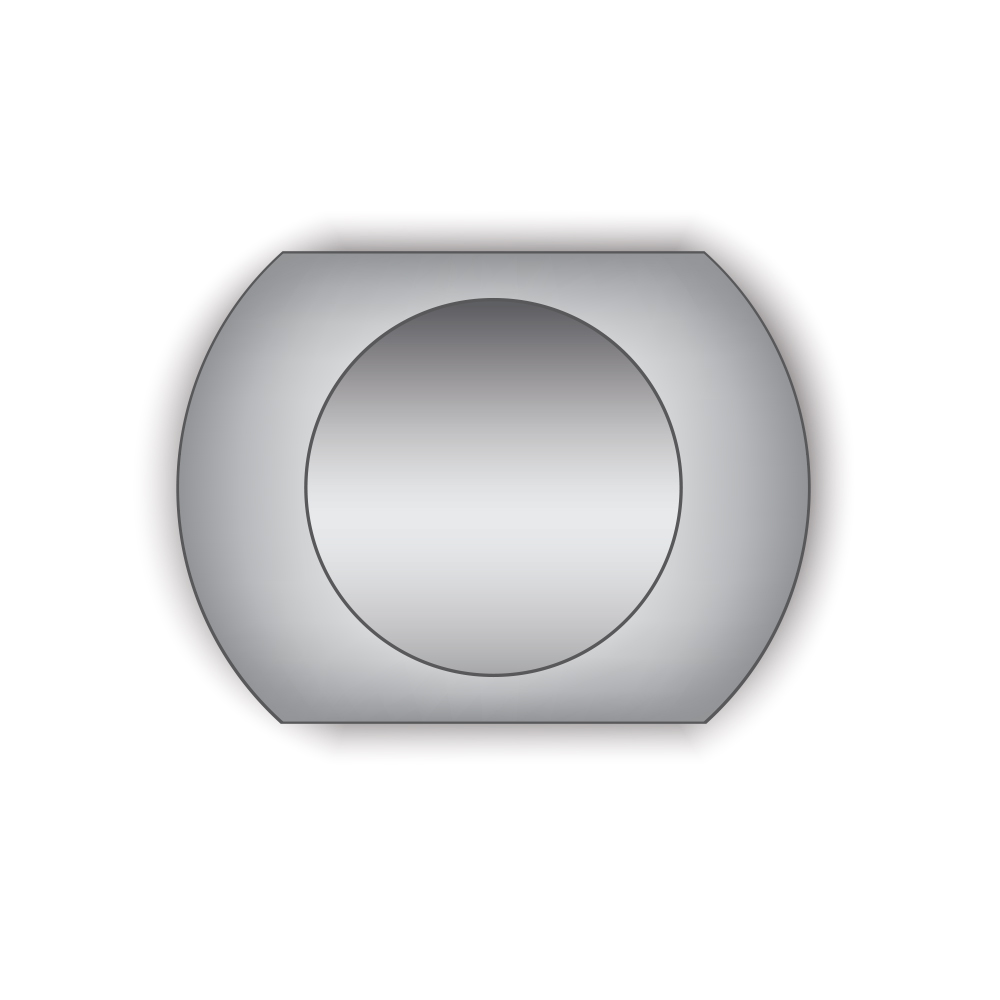

Tee Head

Feature & Benefit: Low torque, toolless drive

Application: Plumbing/Channel extrusions

6 Lobe-Slot Combination

Feature & Benefit: Combination of 6 lobe drive/slotted drive

Application: General purpose

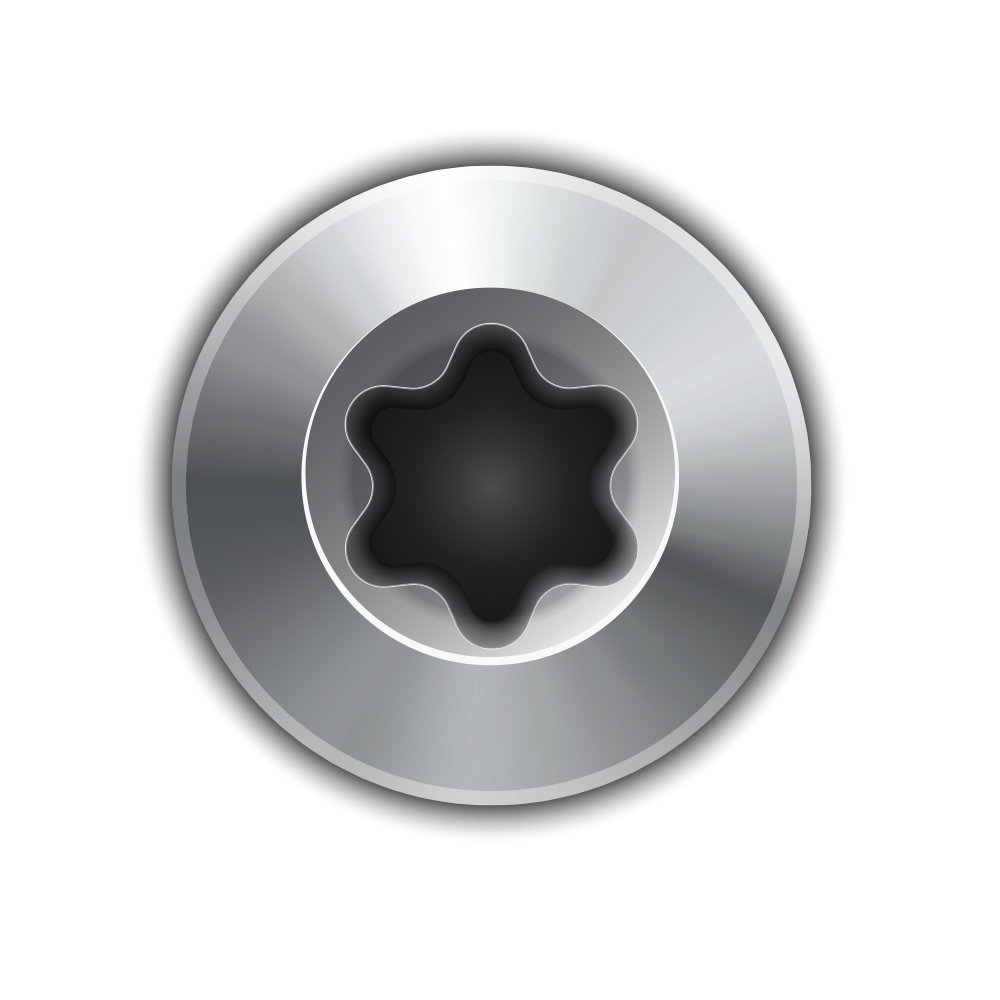

6 Lobe

Feature & Benefit: High torque 6 contact points, best drive for impact

Application: High load applications

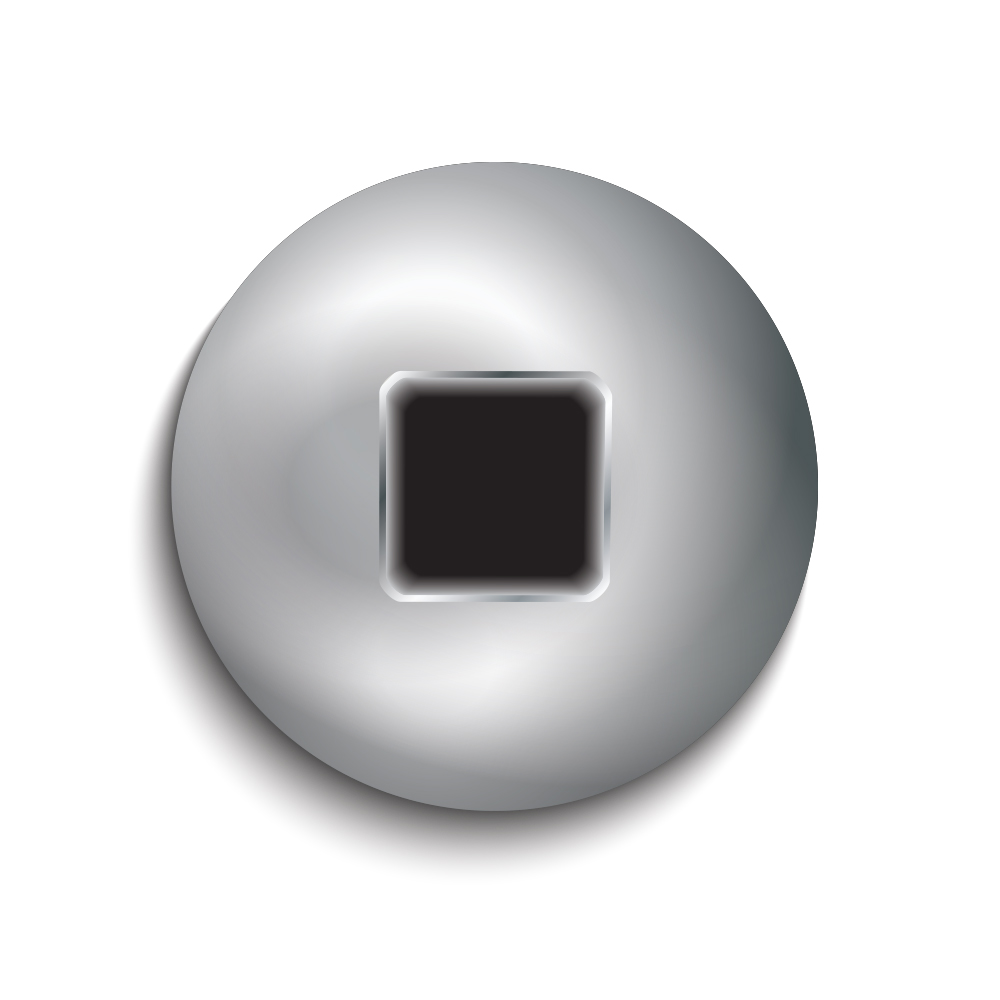

Square

Feature & Benefit: High torque capacity

Application: Most common Canadian screw drive

Square/Slot Combination

Feature & Benefit: Combination of square and slotted drives

Application: Most common Canadian screw drive plus slot

Hex Washer

Feature & Benefit: Common socket wrench drive available in both metric and imperial with broader clamping surface

Application: Highest load applications

Hex

Feature & Benefit: Common socket wrench drive available in both metric and imperial

Application: High load applications

Phillips Hex

Feature & Benefit: Combination of Phillips and socket drive

Application: Automotive, metal fabrication

One-Way Slot

Feature & Benefit: Special head design for being tamper resistant

Application: Security

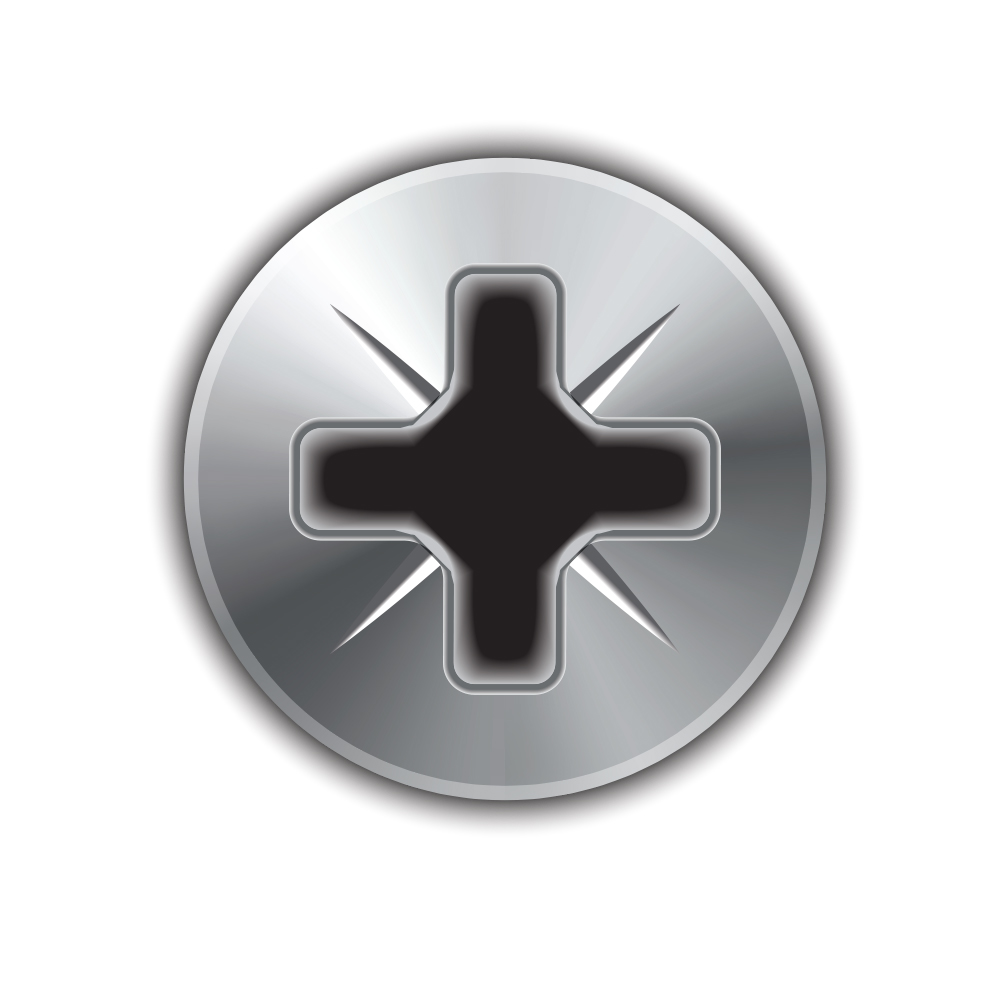

Phillips (Type 1A/Pozi)

Feature & Benefit: Single drive, four contact points

Application: Automotive

Phillips/Slot Combination

Feature & Benefit: Combination of Phillips and slotted drives

Application: General purpose

Phillips (Type 1)

Feature & Benefit: Single drive, four contact points

Application: Common US format, furniture assembly

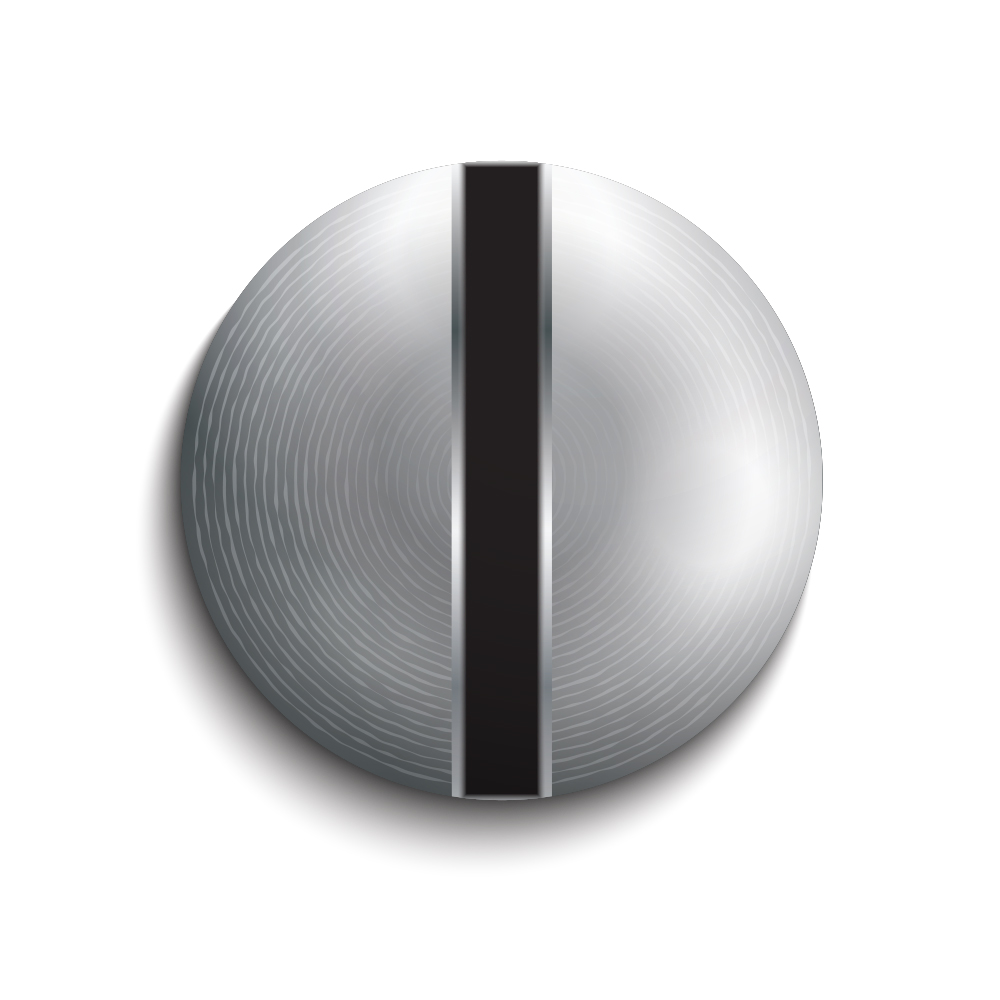

Slotted

Feature & Benefit: Single drive, clean aesthetic

Application: Electrical

Full Serrations

Features & Benefits: Typically highest locking capacity

Annular Ring

Features & Benefits: Specialty

Annular Ring With Serrations

Features & Benefits: Specialty

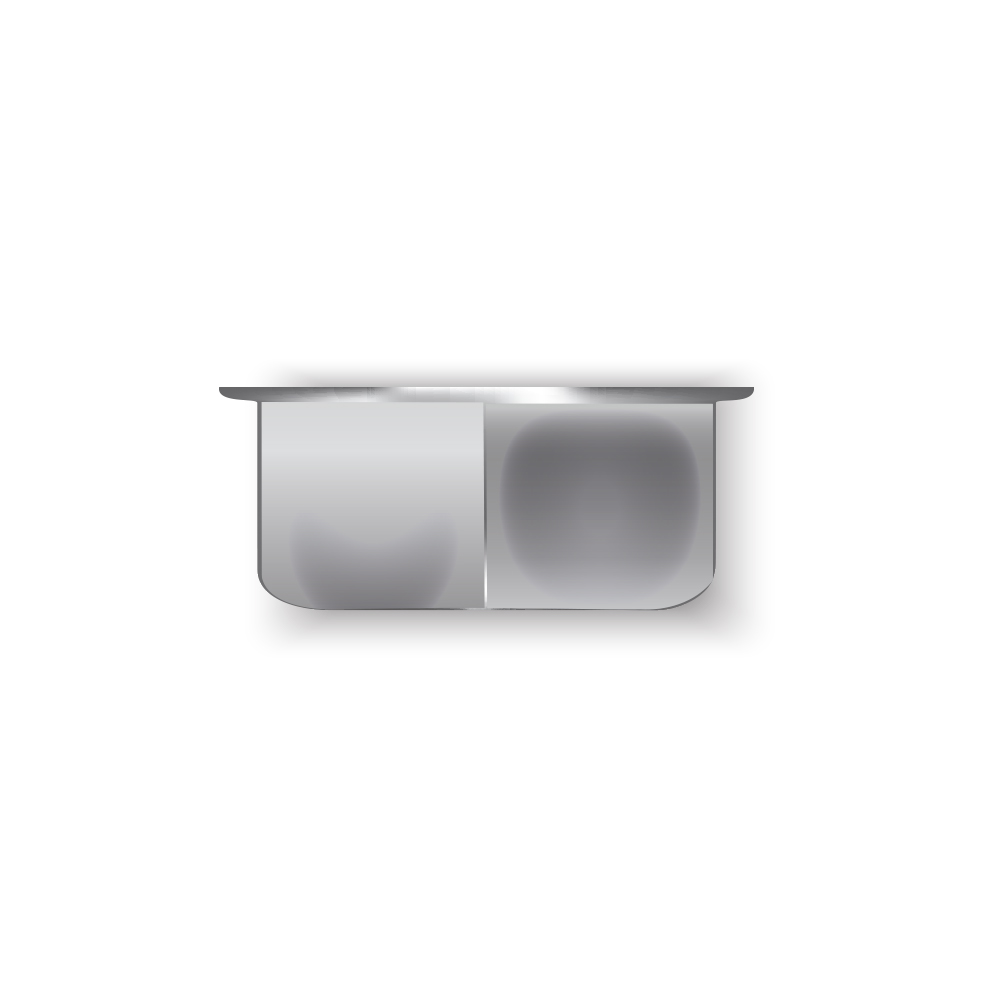

Square Shoulder

Features & Benefits: Typically paired with a round head for fitting in precut channel removing the need for tool

Knurled Shoulder

Features & Benefits: Secure fit

Nib Serrations

Features & Benefits: Used for cutting into softer substrates

Partial Serrations

Features & Benefits: Low torque locking capacity

Reduced Body

Features & Benefits: Specialty

Ribbed Neck

Features & Benefits: Secure fit

Spinlock Serrations

Features & Benefits: Under head locking

1(D)

Application: General purpose

Features & Benefits: Thread cutting machine screws eliminating the need for tapping in mated hole

Cup Point

Application: Specialty

Features & Benefits: Machine screw with dog point to be hammered during assemble for permanent applications

Particle Board

Application: Particle Board

Features & Benefits: Extra coarse thread for low density wood substrates

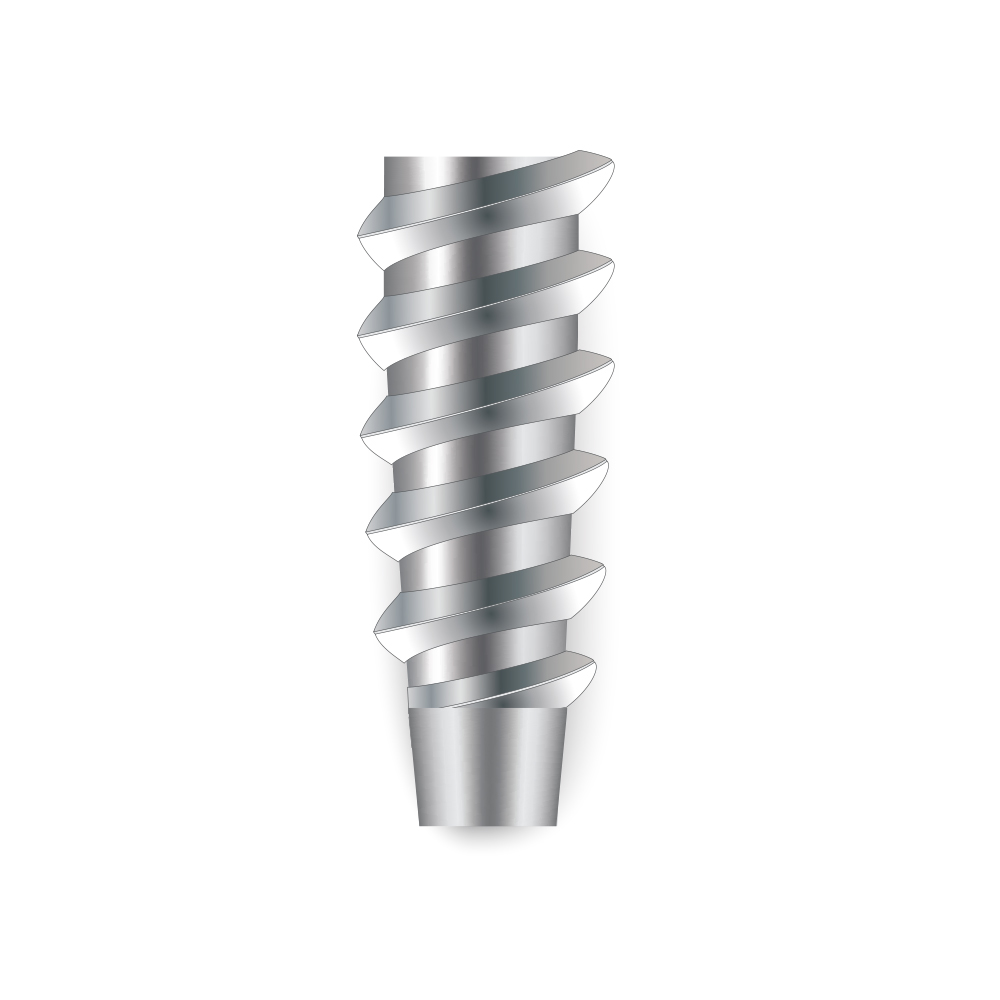

Leader Point B

Applications: Plastic

Features & Benefits: Features blunt point for pre drilled holes in plastic

VA

Applications: Specialty

Features & Benefits: Features slot cut through threads

Thread_Hi Low Blunt Point

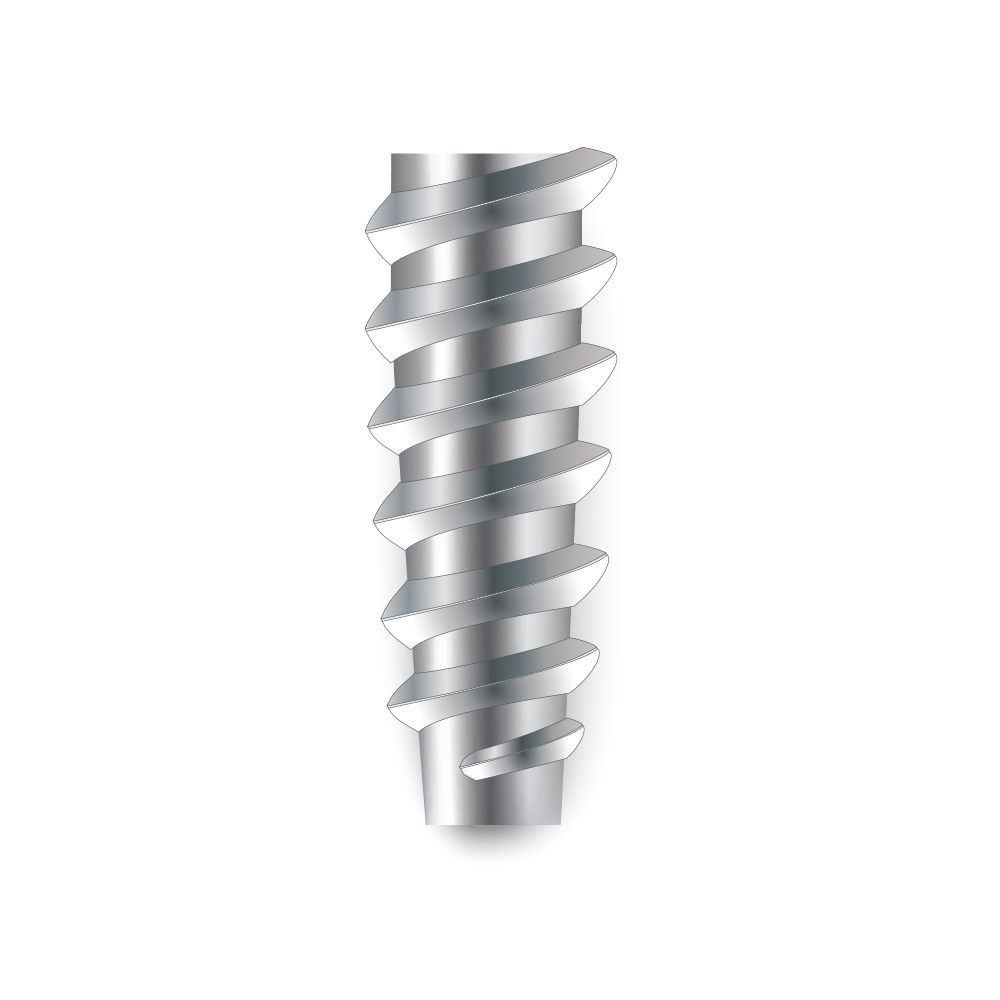

B

Application: Plastic

Features & Benefits: Features blunt point for pre drilled holes in plastic

BF

Application: Plastic

Features & Benefits: Features blunt point for pre drilled holes in plastic

BP

Application: Plastic

Features & Benefits: Features blunt point for pre drilled holes in plastic

C

Application: Electrical

Features & Benefits: Thread forming machine screw for reduced debris

Dog Point

Application: Metal to metal applications

Features & Benefits: Machine screw with a lead in point for easier guidance

F

Application: General Purpose

Features & Benefits: Thread cutting machine screws eliminating the need for tapping in mated hole

Header Point

Features & Benefits: Most common fine thread format with lead in point

Thread_Hi LOw Blunt Point Type 25

Trilobular

Application: High vibration applications

Features & Benefits: Anti vibration locking machine screw

Thread_Solid Rivet

Thread_Solid Rivet Header Point

Thread_Plastobular

Trilobular CA

Application: High vibration applications

Features and Benefits: Pointed machine screw with trilobular thread for tapping into softer substrates

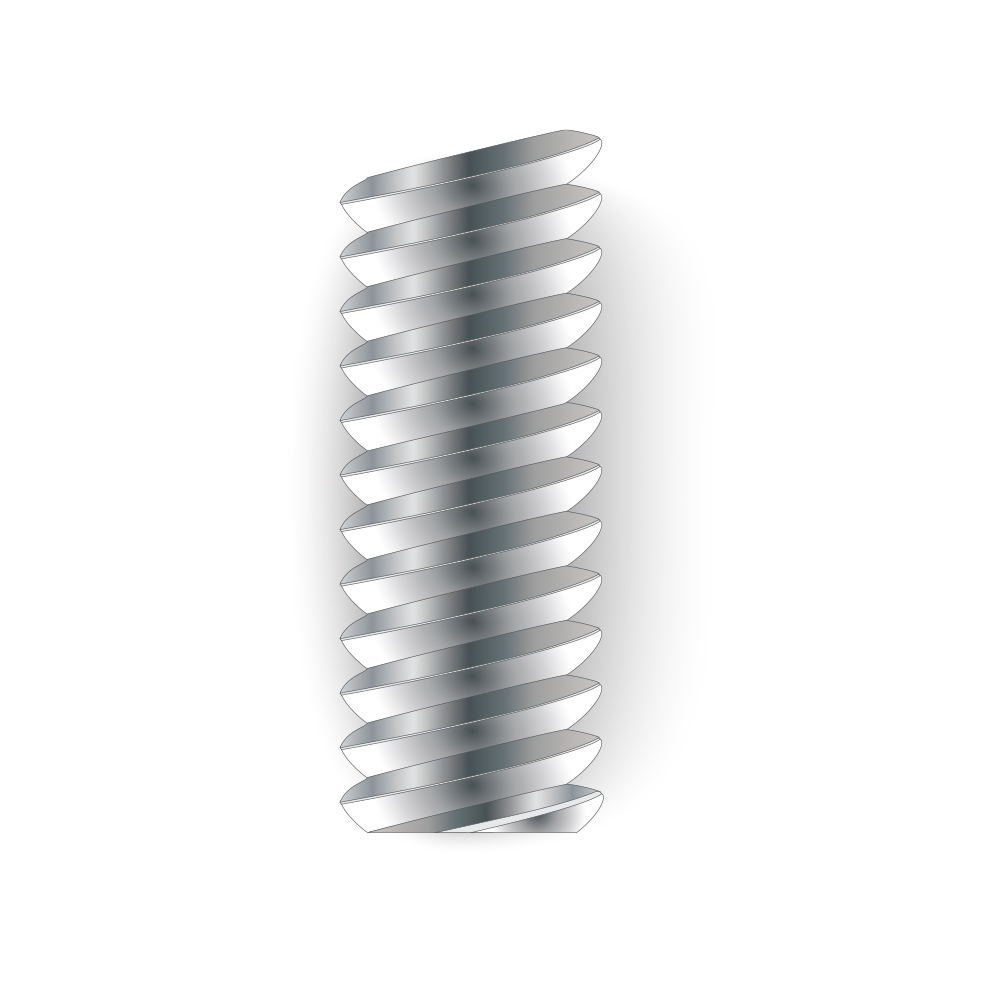

Thread_MS

CA

Application: General Purpose

Features and Benefits: Pointed machine screw for tapping into softer substrates

Universal Head

Feature & Benefit: Universal compatibility

Truss Head

Feature & Benefit: Low profile for broad clamping surface

Round Head

Feature & Benefit: Compact and economical head

Pan Head

Feature & Benefit: Compact and economical head

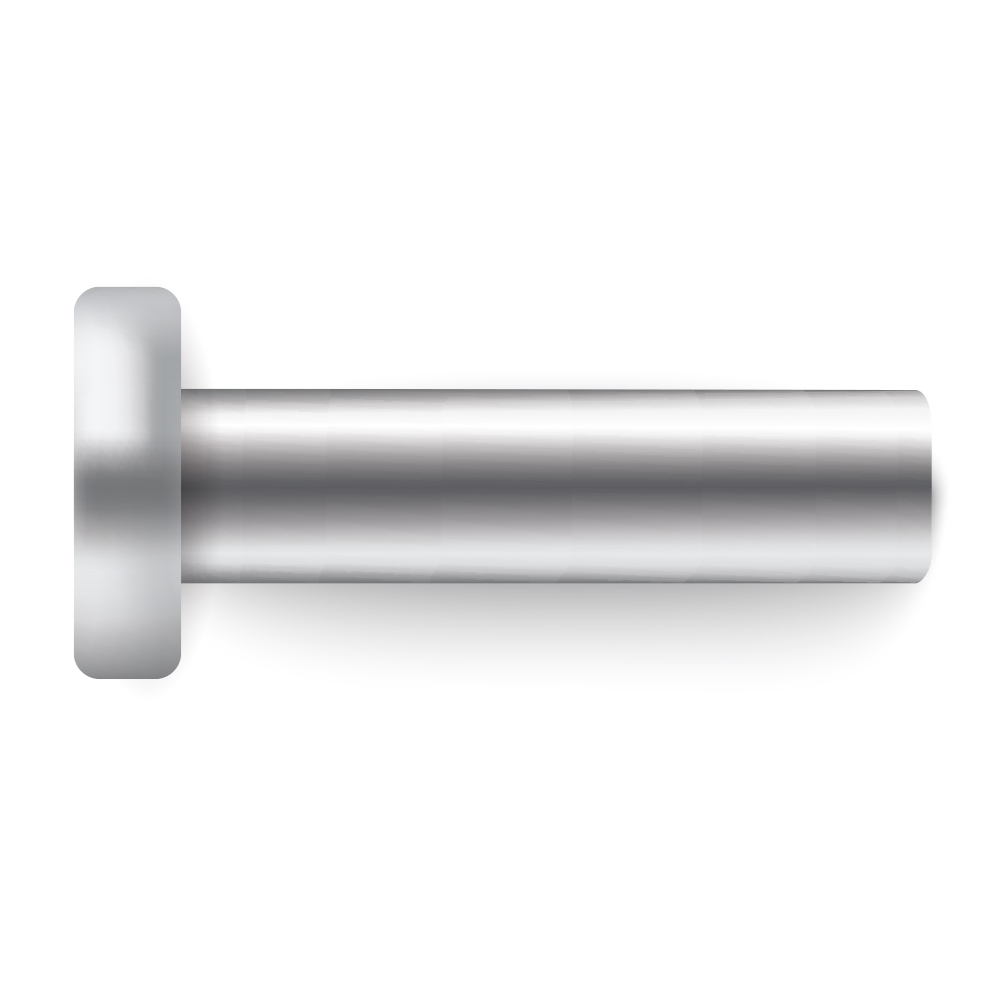

Flat Head

Feature & Benefit: Low profile

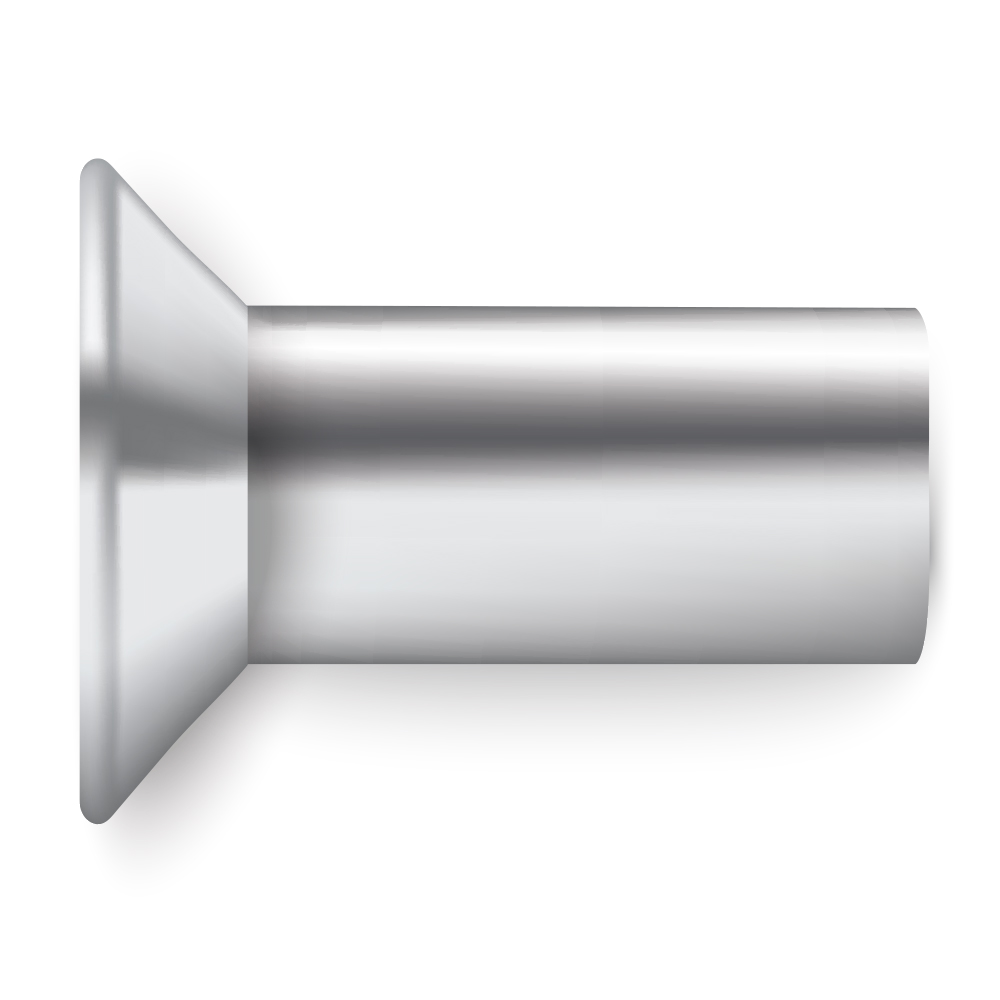

Countersunk Head

Feature & Benefit: Head recessed to create flush surface
